冷卻能源最佳化

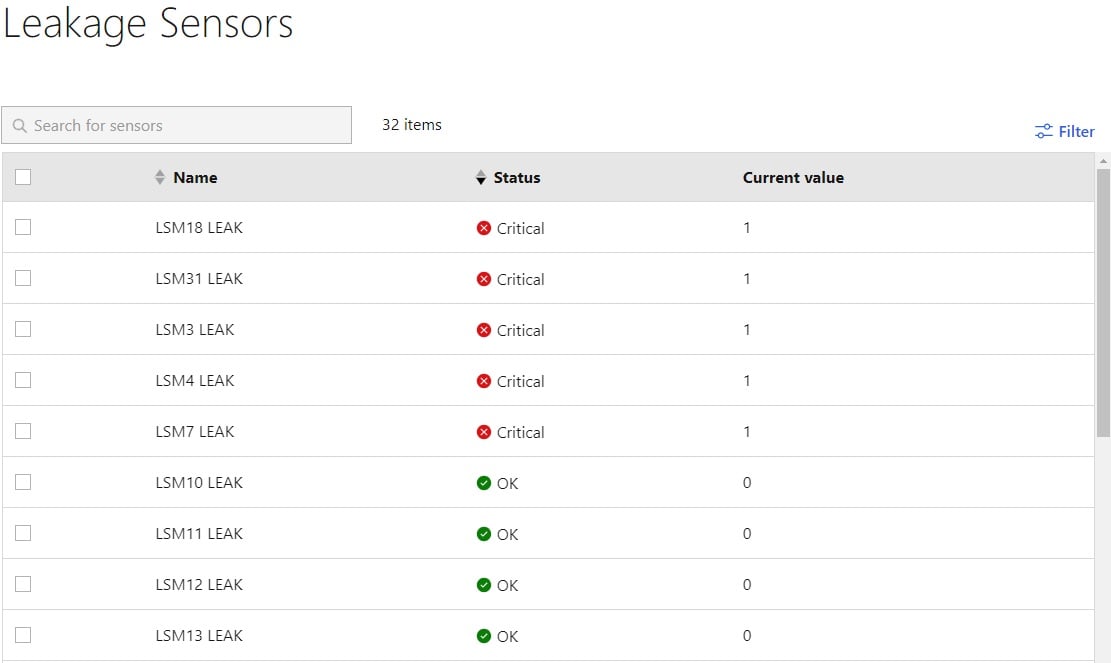

洩漏偵測與防護
可直接連接至數位/類比感測器或可程式邏輯控制器(PLC)
即時監控及槽狀態控制
產品規格
| SKU | UMS100 for Liquid Cooling | UMS110 for Immersion Cooling |
| Processor | ‧ ASPEED AST2600 | |
| Redundancy | ‧ Dual Management Board Redundancy | |
| Management Interface | ‧ Redfish API ‧ WebUI |
|
| Management Port | ‧ 1Gbps (RJ45) x1 per Management Board ‧ MODBUS RTU (RJ45) x4 ‧ MODBUS TCP 100Mbps (RJ45) x 16 |
|
| I/O Port | ‧ I2C (RJ45) x32 (Leakage Detection) ‧ Analog Input x4 (Rack-level Leakage Detection) |
‧ Primary Sensors: 75 pcs ‧ Backup Sensors: 50 pcs |
| Device U (Height) | ‧ 2RU | |
| Chassis Dimension (W*D*H) | ‧ 855 * 540 * 92.7mm | ‧ 440 * 440 * 86.7mm |
| Power Source | ‧ 48V busbar | ‧ CRPS |
